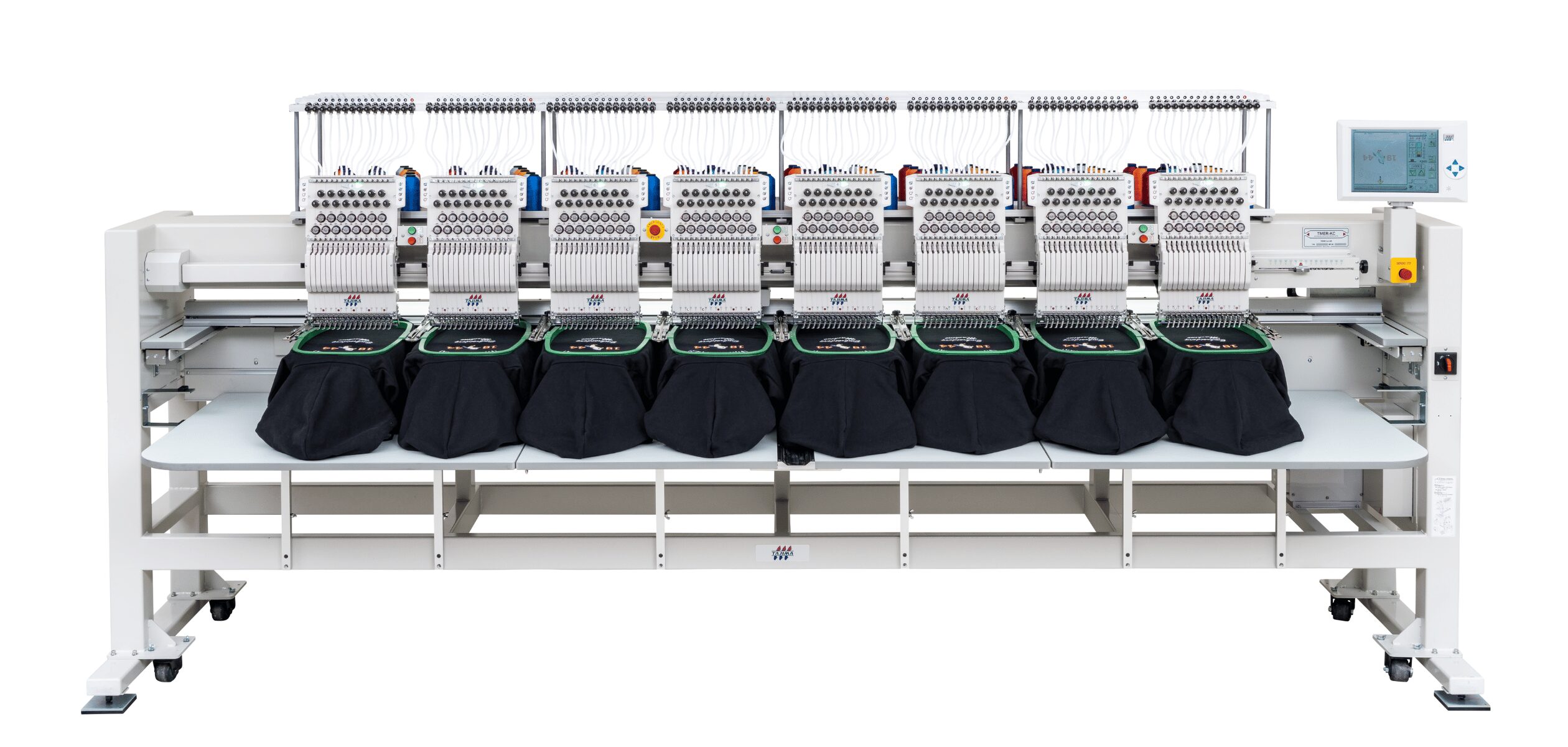

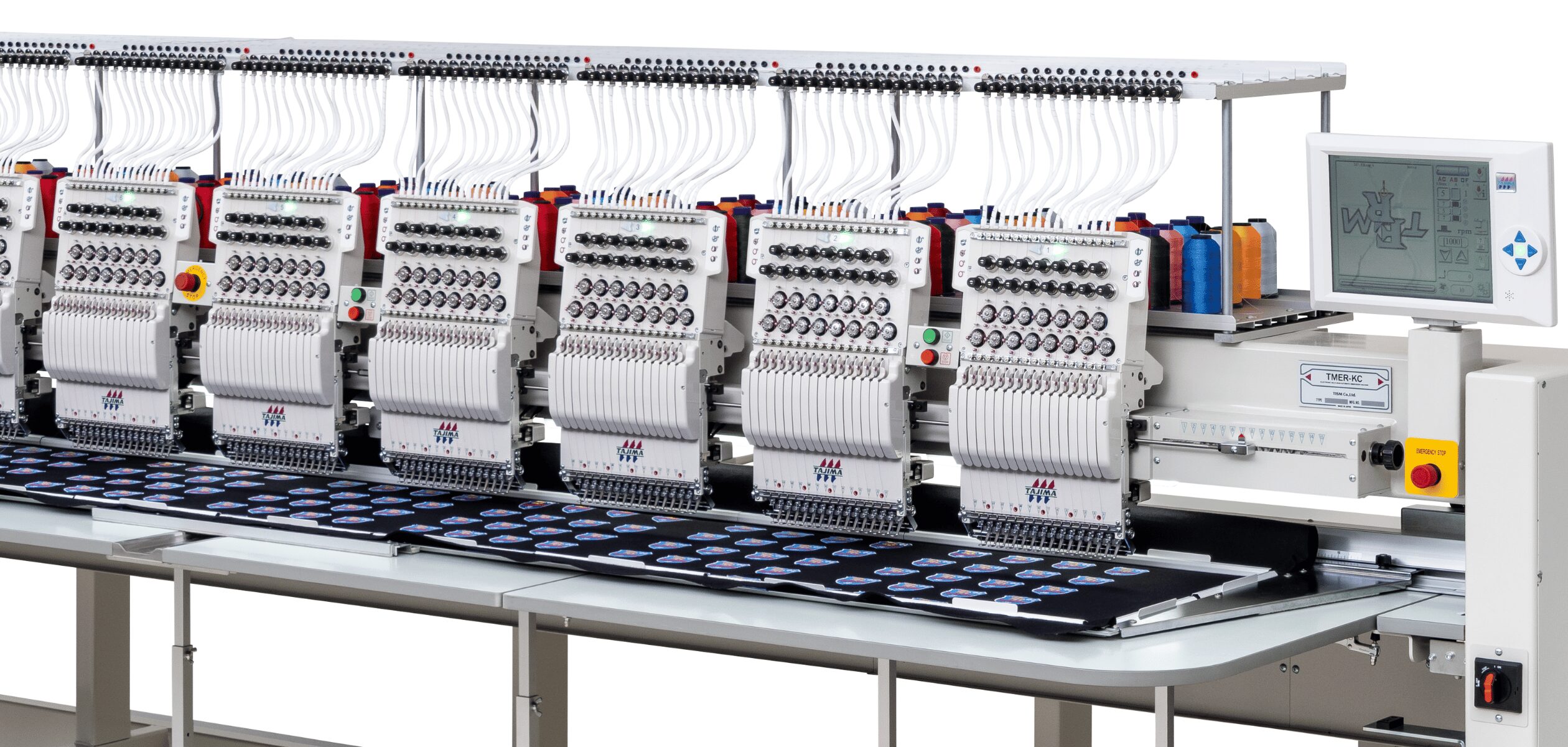

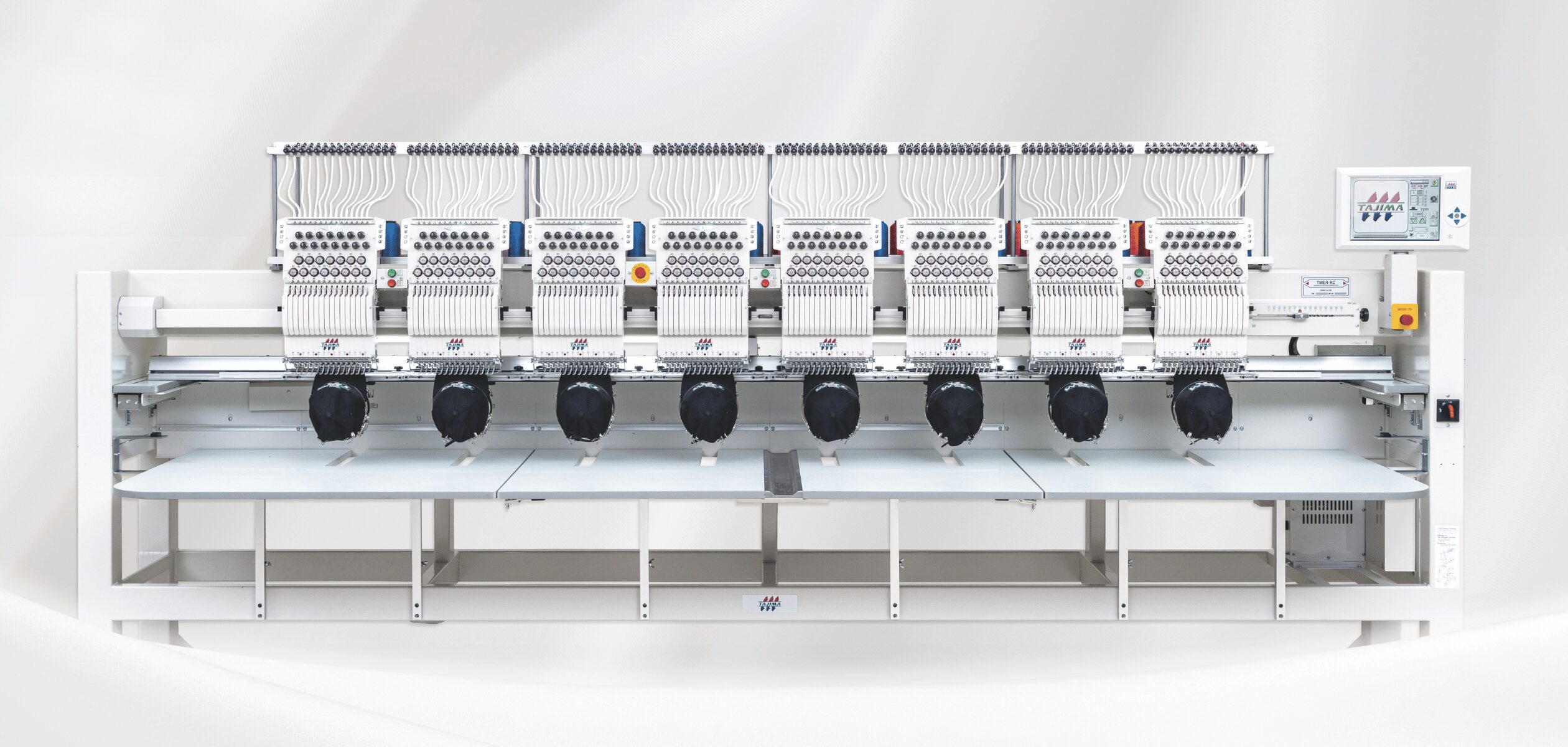

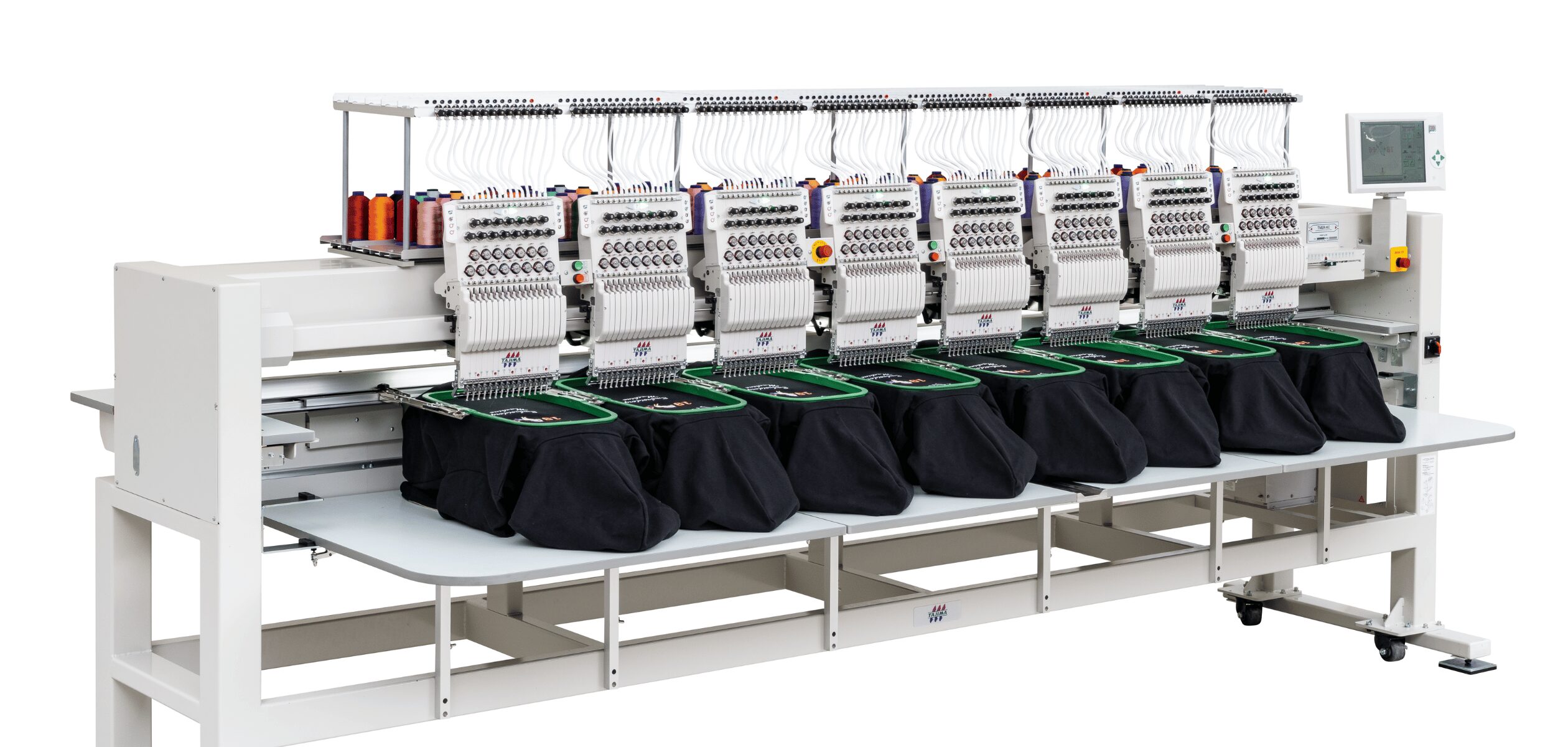

“TMER-KC” Multi-head Cylinder Type High-end Model

The TMER-KC multi-head cylinder type high-end model embroidery machine allows you to add a wide variety of embroidery to finished products, and the DCP provides a precise and beautiful finish, regardless of the material. It is suited for embroidering logos and emblems on finished products such as sports uniforms and hats in small to medium quantities.

In addition, the machine offers a variety of advanced features developed to meet the demands of modern production environments, including Wi-Fi connectivity and integration with PulseIQ. It can handle a wide range of materials, from thick fabrics to leather, while combining superior quality, productivity, and ease of operation to satisfy the requirements of embroidery professionals.

“DCP” Provides Stable Sewing regardless of Fabric Thickness

The Digitally Controlled Presser foot (DCP) applies proper pressure based on fabric thickness changes in just 0.05 seconds per stitch. Therefore, it instantly adapts to both thick and thin fabrics. Quilted fabrics are sewn with the padding pressed down firmly, while 3D embroidery using urethane is sewn three-dimensionally without pressing down excessively.

Point 1: Stable finish for both thin and thick materials

It firmly holds fabrics from sheer to knit materials so that they do not flutter regardless of the item.
Embroidery is always applied with consistent quality to items of varying thickness and stiffness, such as T-shirts, hats, socks, bags, etc.

Point 2: Minimize quality defects

The DCP reduces fabric fluttering, resulting in fewer press marks and thread trimming errors, and thus fewer defective pieces. Manual adjustment for delicate fabrics such as velvet and enameled material reduces the risk of fabric press marks.

More about DCP

Suitable for any finished product, regardless of the item

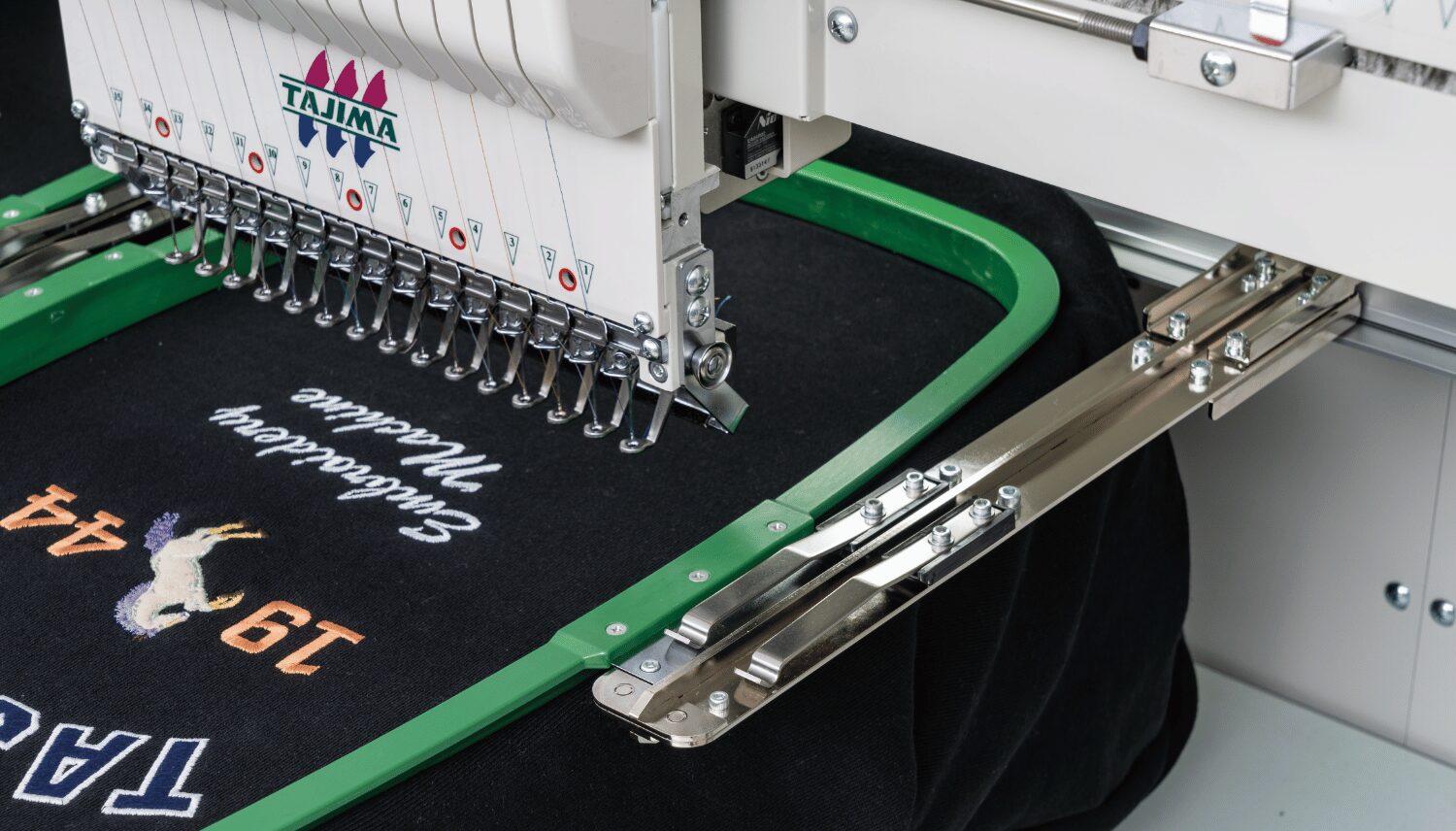

Reinforced tubular frame arm

The rigidity of the arm supporting the tubular frame has been enhanced. Improved frame removal allows smoother embroidery operations.

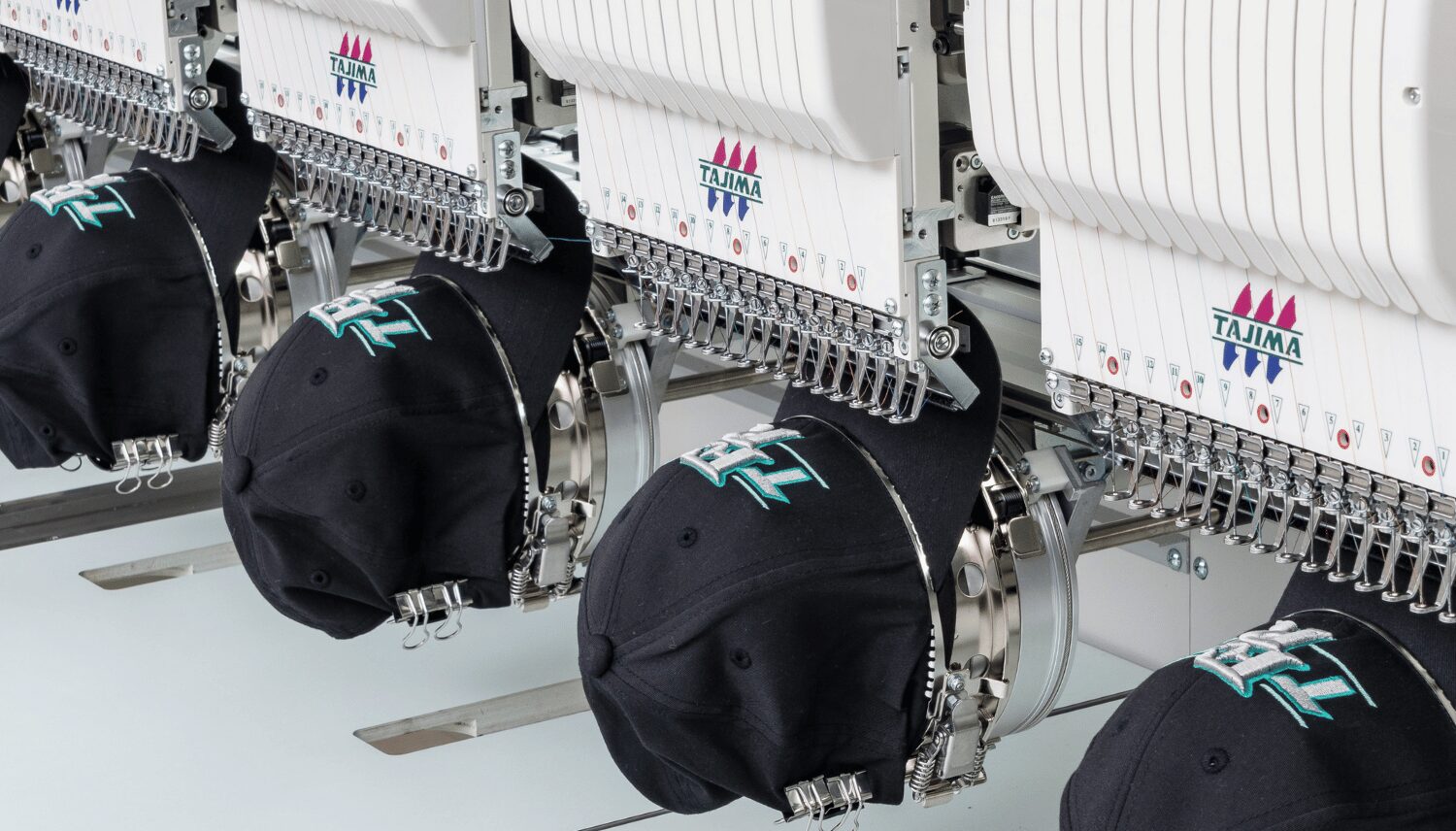

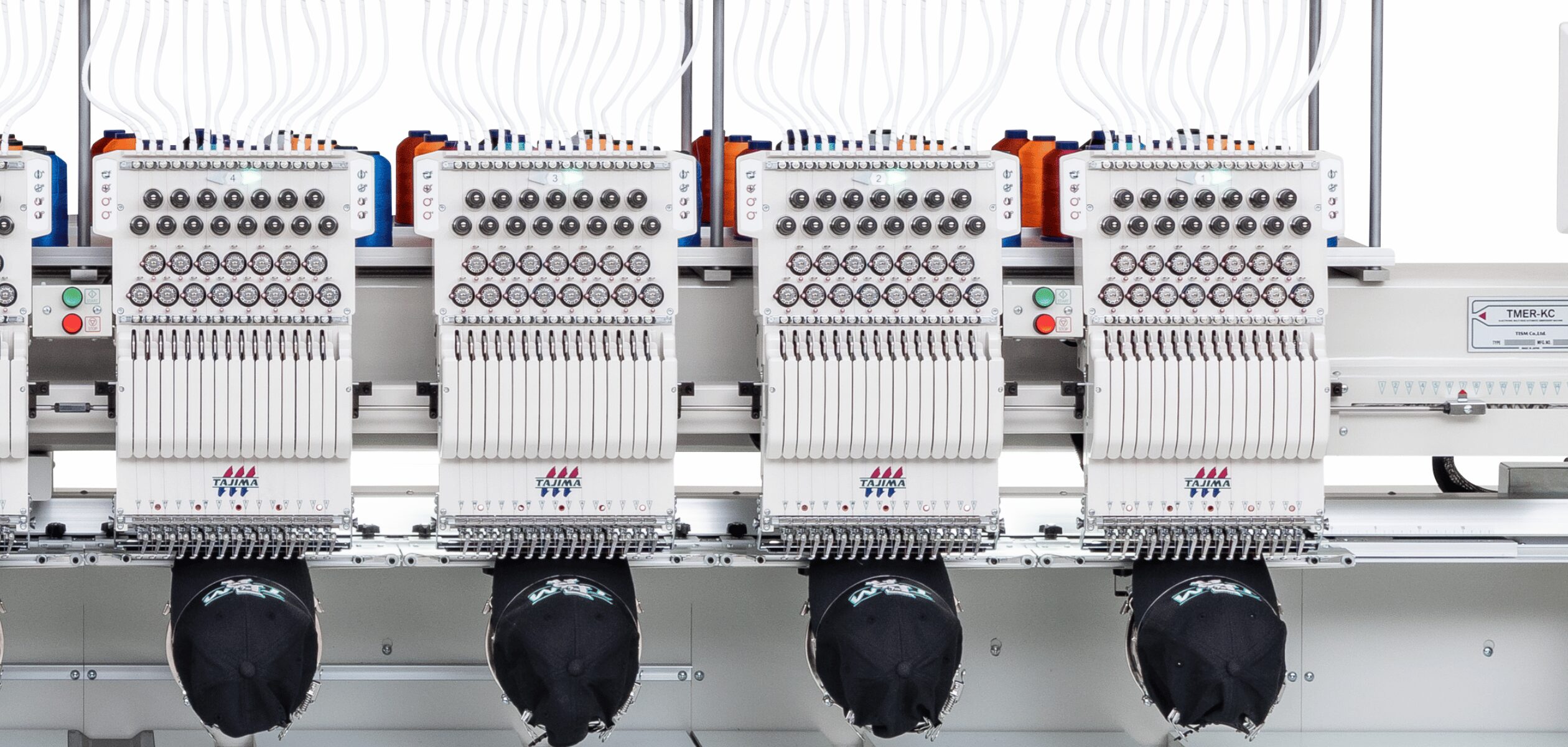

Fast and clean cap embroidery

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.

Slim cylinder beds for small goods

The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.

User-Friendly Design

In addition to DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

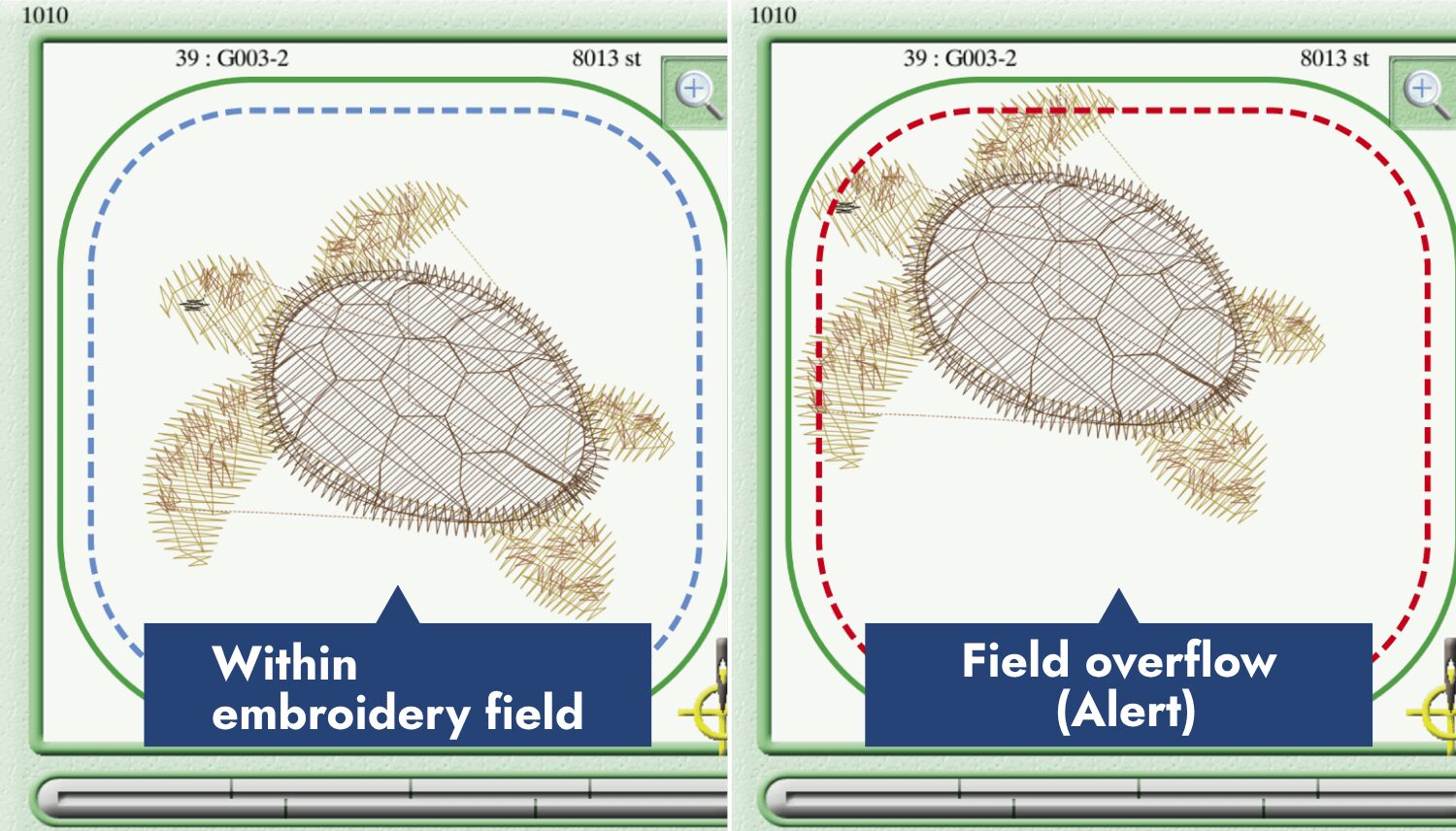

Easier embroidery pattern positioning

The screen shows the alignment between the embroidery frame and the design.
Users can easily check the embroidery position, reducing errors such as misalignment and incorrect hooping.

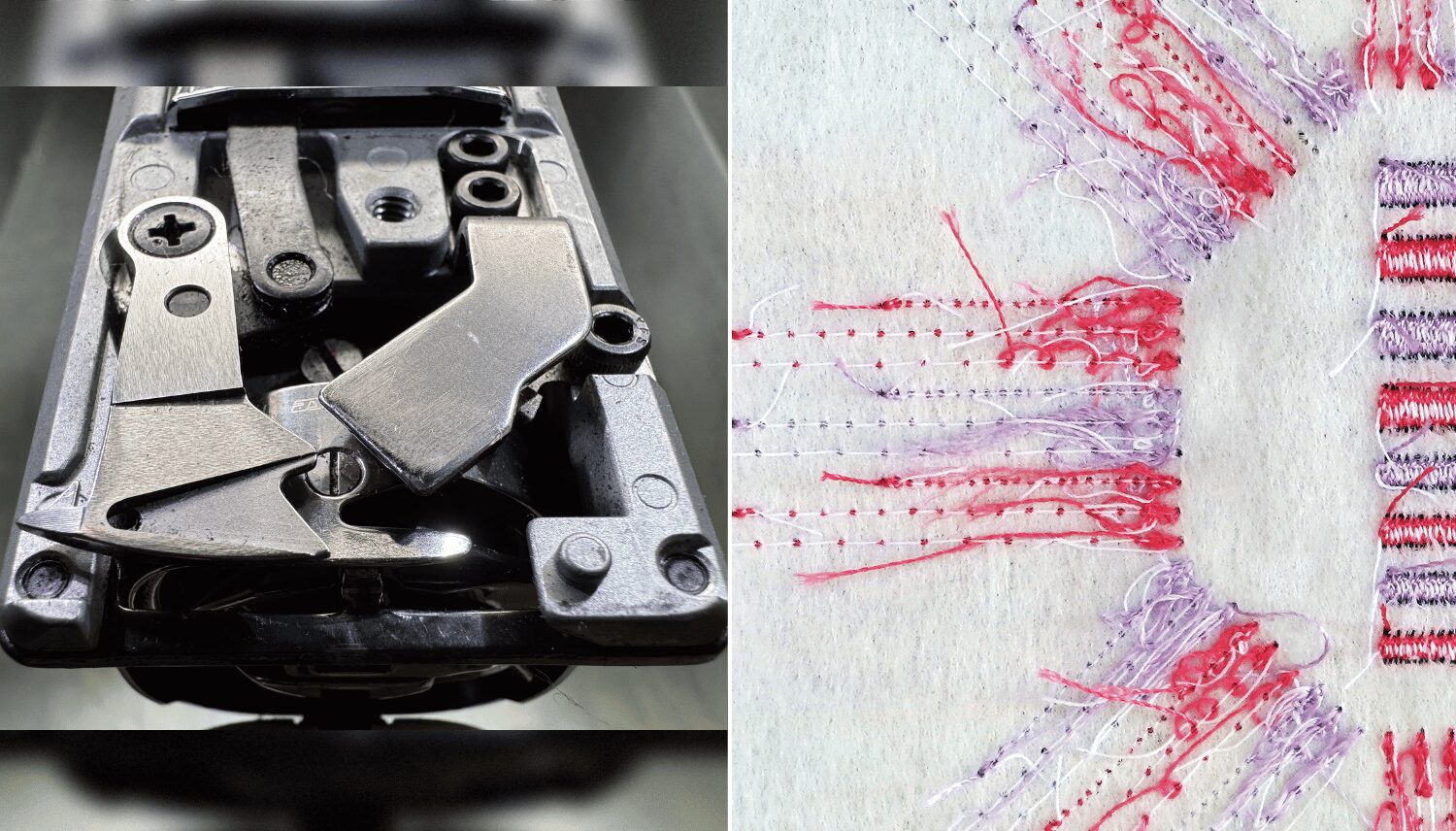

Further enhanced automatic thread trimmer

The structure and material of the trimming blade have been redesigned to improve durability. This eliminates the need for frequent blade replacement, reduces maintenance workload, and ensures a clean finish on the reverse side of the fabric.

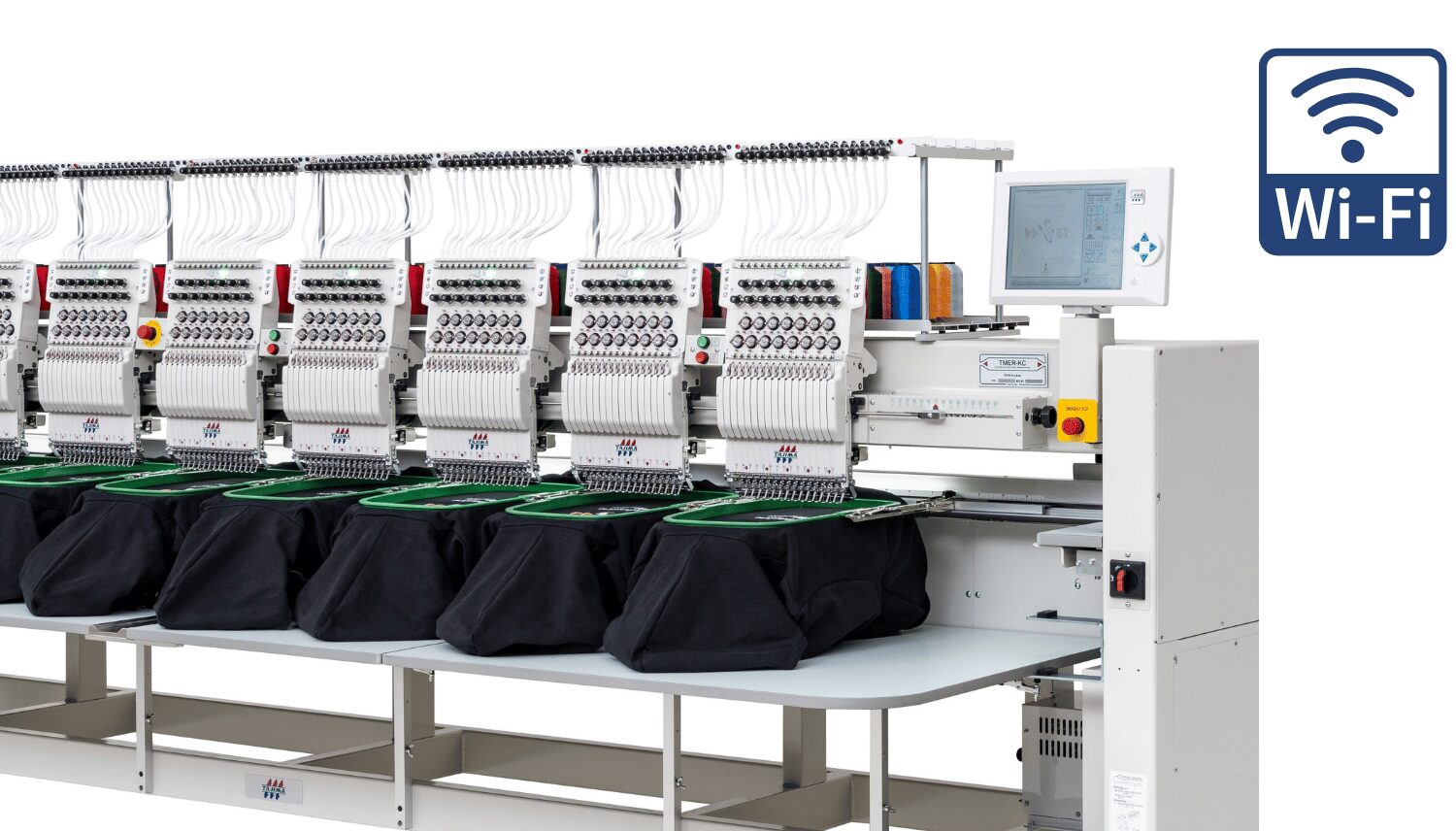

Wi-Fi network connectivity

Simplifies embroidery data transfer and improves workflow efficiency.
*Option

Tajima’s Customer Support Services

PulselQ　Simpler, Smarter Embroidery.

PulselQ – the innovative cloud service that accelerates embroidery production efficiency
With embroidery machines always connected to the network, various tasks in embroidery production, from design management to progress tracking, are centralized. Smartphone – based embroidery operation can significantly enhance both efficiency and quality.
PulselQ provides a new embroidery experience while reducing production costs.

More about PulselQ

Sales in 160 countries and regions around the world.

We have delivered machines to 160 countries and regions and have a worldwide service network. Replacing embroidery machines or starting a new embroidery business? We apply Tajima’s proprietary AI technology and software in helping resolve our customers’ business issues. Please feel free to contact us through the CONTACT form.

TMER-KC　

TMER-KC Product Specifications

2/4/6/8

Multi color heads

9/12/15

Needles

360/500㎜

Head interval

1,100rpm

Maximum speed

760ｗ

Power consumption

Needles	Multi color head	Head interval	Embroidery field （D×W） (*2)				Overall Width	Depth	Height
Needles	Multi color head	Head interval	Border Frame	Wide Cap Frame	Semi-wide Cap Frame	Tubular Frame	Overall Width	Depth	Height
9/12/15	2	500	450×500 mm 17.7×19.6 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×419 mm 17.2×16.5 inch	2,260 mm 88.9 inch	1,355 mm 53.3 inch 1,037 mm 40.8 inch (*1)	1,730 mm 68.1 inch
9/12/15	4	360	450×360 mm 17.7×14.1 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×279 mm 17.3×10.9 inch	2,560 mm 100.7 inch		1,730 mm 68.1 inch
9/12/15	4	500	450×500 mm 17.7×19.6 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×419 mm 17.3×16.5 inch	3,260 mm 128.3 inch		1,740 mm 68.5 inch
9/12/15	6	360	450×360 mm 17.7×14.1 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×279 mm 17.3×10.9 inch	3,280 mm 129.1 inch		1,740 mm 68.5 inch
9/12/15	6	500	450×500 mm 17.7×19.6 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×419 mm 17.3×16.5 inch	4,260 mm 167.7 inch		1,740 mm 68.5 inch
9/12/15	8	360	450×360 mm 17.7×14.1 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×279 mm 17.3×10.9 inch	4,000 mm 157.4 inch		1,740 mm 68.5 inch
9/12/15	8	500	450×500 mm 17.7×19.6 inch	75×360 mm 2.9×14.1 inch	83×180 mm 3.2×7.0 inch	439×419 mm 17.3×16.5 inch	5,260 mm 207.0 inch		1,740 mm 68.5 inch

*Power supply
・Power supply
　　3-phase　200V　50/60Hz
　　Single-phase　100V/ 200V　50/60Hz
・Contact us for other specifications and more details.
・Actual embroidery field and embroidery speed may vary depending on the product, machine model, and operating conditions.

(*1) The depth dimension indicated in parentheses applies to the model with the shorter table length.
(*2) The embroidery field shown represents the maximum operating range; the actual stitchable area may be limited depending on the frame, presser foot, and other conditions used.
