“TMAR-KC” Multi-Head Cylinder Type High-end Model

The TMAR-VC mid-class high-end cylinder type embroidery machine allows you to add a wide variety of embroidery to finished products, and the DCP provides a precise and beautiful finish, regardless of the material. It is suited for embroidering logos and marks on finished products such as sports uniforms and hats in large quantities.
*The TMAR-KC is configured with 2 to 8 heads, the TMAR-VC with 12 heads.
For more information, please contact us through the CONTACT form.

“DCP” Provides Stable Sewing regardless of Fabric Thickness

The Digitally Controlled Presser foot (DCP) measures the thickness of the fabric in 0.05 seconds per stitch and presses the fabric with optimal pressing force. Therefore, it instantly adapts to both thick and thin fabrics. Quilted fabrics are sewn with the padding pressed down firmly, while 3D embroidery using urethane is sewn three-dimensionally without pressing down excessively.

Point 1: Stable finish for both thin and thick materials

It firmly holds fabrics from sheer to knit materials so that they do not flutter regardless of the item.
Embroidery is always applied with consistent quality to items of varying thickness and stiffness, such as T-shirts, hats, socks, bags, etc.

Point 2: Minimize quality defects

The DCP reduces fabric fluttering, resulting in fewer press marks and thread trimming errors, and thus fewer defective pieces. Manual adjustment for delicate fabrics such as velvet and enameled material reduces the risk of fabric press marks.

More about DCP



Tajima’s quality recognized by leading brands

It is used by leading brands and fashion houses. They yield a beautiful finish, regardless of whether you are using a satin stitch, a running stitch, or a fill stitch. What’s more, a variety of options for sequins and beads enables additional forms of expression. Beautiful and exquisite embroidery with multi-head technology in which all heads are synchronized.



Suitable for any finished product, regardless of the item

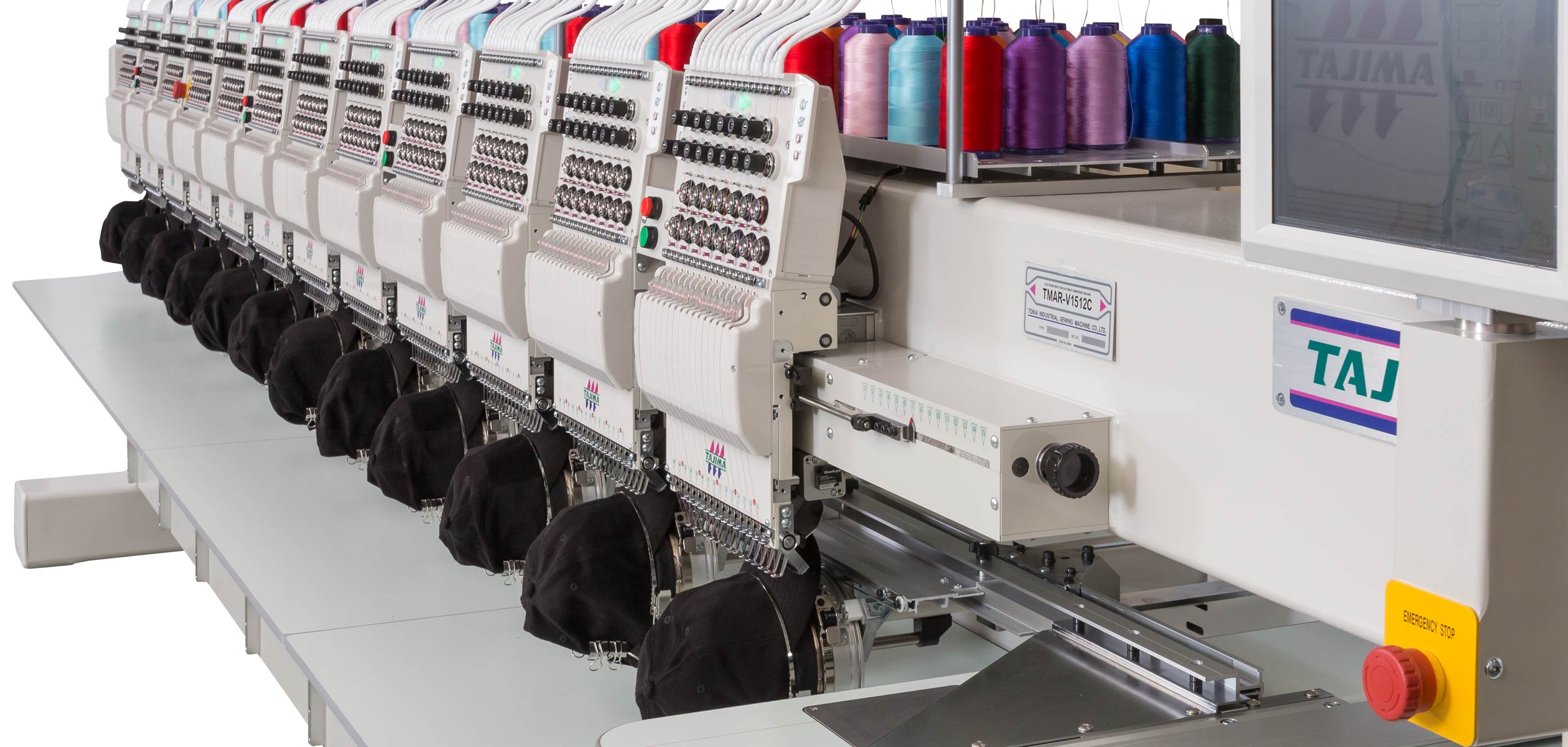

Fast and clean cap embroidery

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.

Reinforced arm supports heavy items

Three times stronger than traditional embroidery machine arms, they are also more suitable for embroidery on jackets and other heavy items.

Slim cylinder beds for small goods

The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.



User-Friendly Design

In addition to DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

12.1-inch touch panel

The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.

Direct Command Switches

Located on the head, these operation switches provide control of the thread trim and other functions at each tension base for increased production efficiency.

New auto thread trimming device

Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.



Tajima’s Customer Support Services

Offer Personalized Embroidery Through E-Commerce and Stores

PulseID provides comprehensive support for embroidery personalization, from receiving in-store or online e-commerce orders to production and management. It saves labor and increases efficiency while helping enhance brand loyalty and advertising effectiveness.

More about Personalization



Sales in 130 Countries Around the World

We have delivered machines to more than 130 countries and have a worldwide service network. Replacing embroidery machines or starting a new embroidery business? We apply Tajima’s proprietary AI technology and software in helping resolve our customers’ business issues. Please feel free to contact us through the CONTACT form.

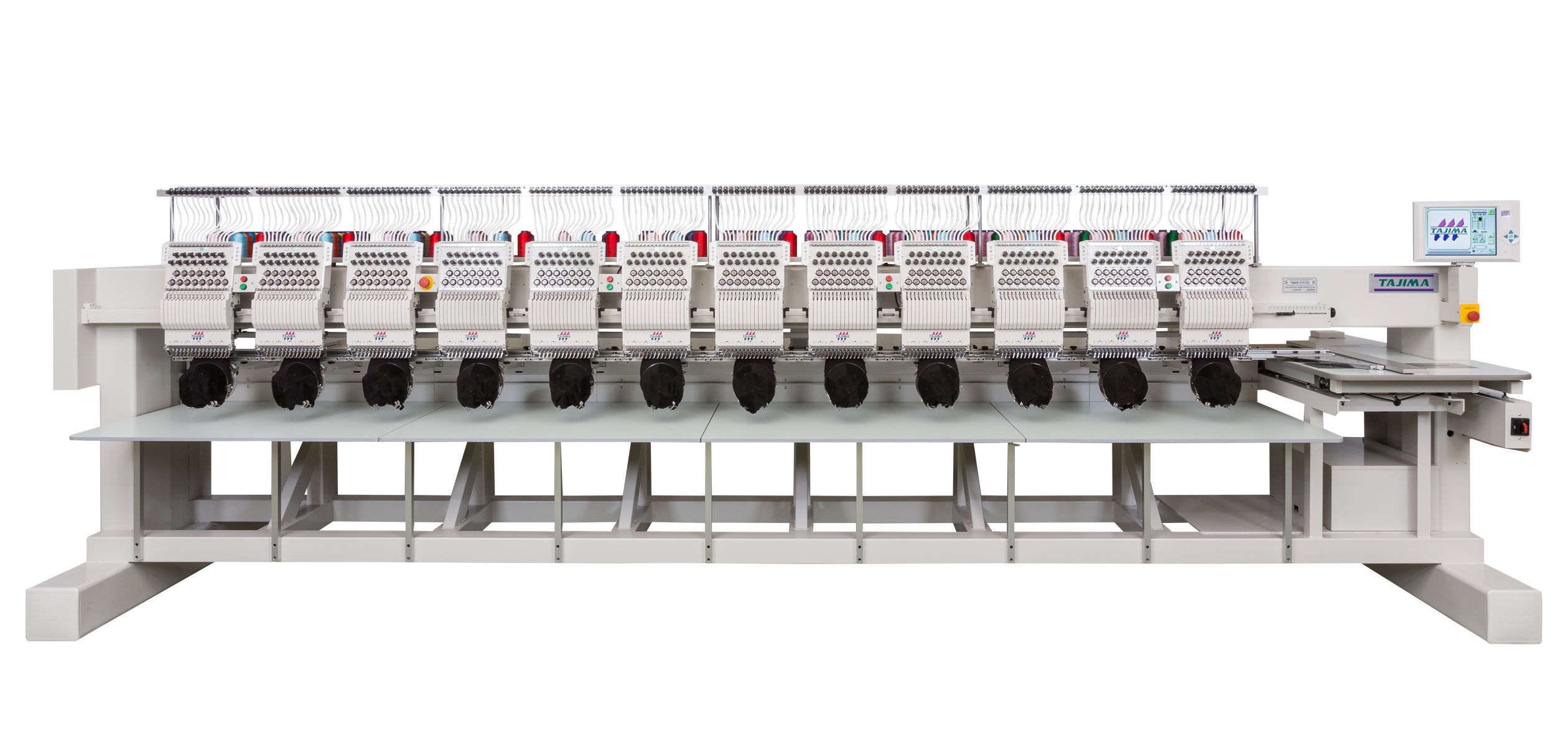

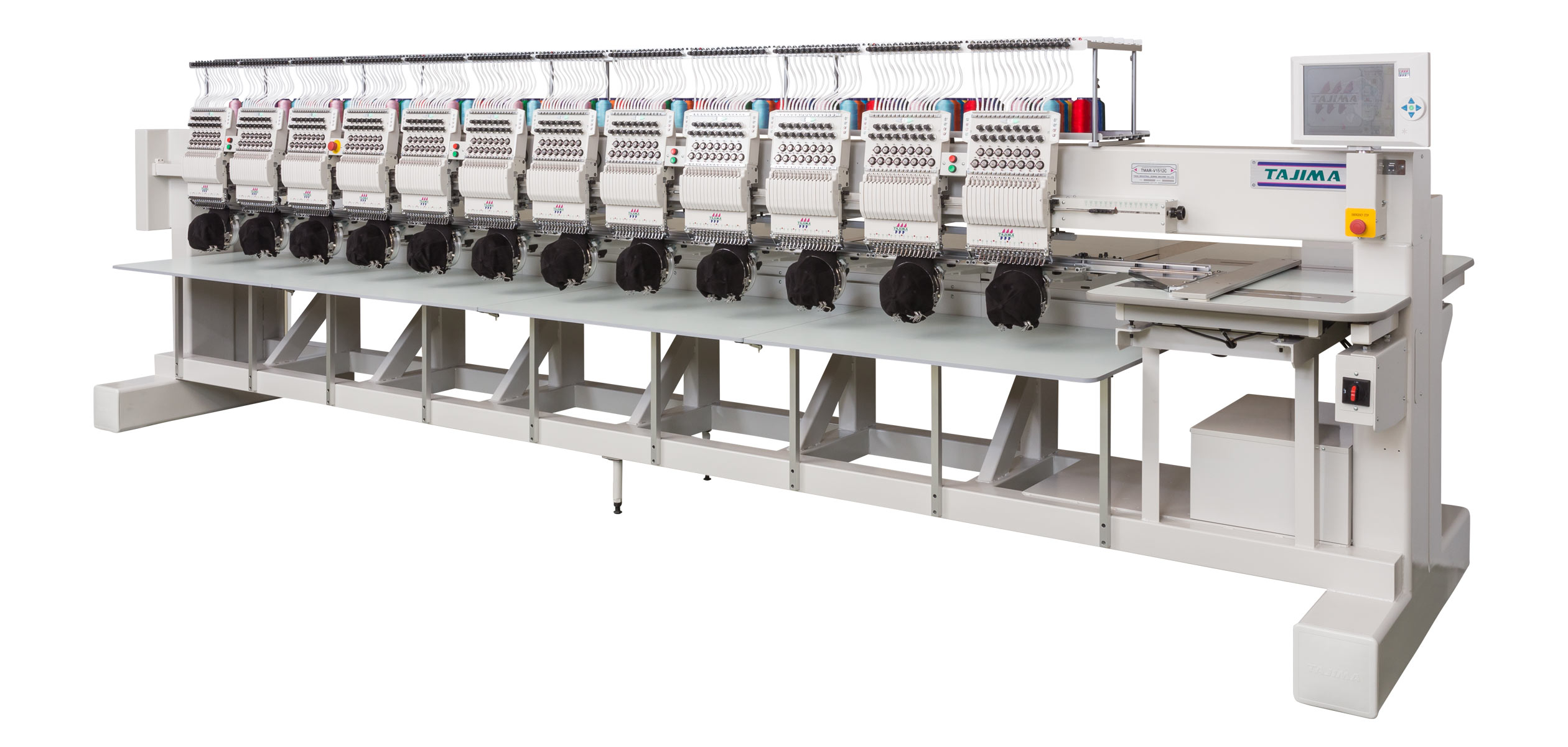

TMAR-VC

TMAR-VC Product Specifications

12

Multicolor heads

12/15

Needles

360

Head interval

1,100rpm

Max Revolution

700w

Power consumption



Model Needles  Multi
color head
Head interval Embroidery field (D×W)  Overall Width Depth Height
Border Frame Wide Cap Frame Cap Frame Tubular Frame
Tubular Frame spec. 12/15 12 360 450×360mm
17.7×14.1inch
75×360mm
2.9×14.1inch
83×180mm
3.2×7.0inch
439×279mm
17.2×10.9inch
5660mm
222.8inch
1480mm
58.2inch
1705mm
67.1inch
Border frame spec. 12/15 12 360 450×360mm
17.7×14.1inch
75×360mm
2.9×14.1inch
83×180mm
3.2×7.0inch
439×279mm
17.2×10.9inch
5820mm
229.1inch
1780mm
70inch
1705mm
67.1inch

*Power consumption
 3-phase 200-240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
 Single-phase 200-240V 50Hz/60Hz
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
*The TMAR-KC is configured with 2 to 8 heads, the TMAR-VC with 12 heads.



Factory options support a wider variety of embroidery expression and increase production efficiency

Position Marker

Beam Sensor

Click here for a list of other options.



Embroidery frame that can be applied to various items

Tubular Frame

Cap Frame

Border Frame
