“TMEZ-SC” Flagship Single-Head Cylinder Type Model

The TMEZ-SC series single-head cylinder type embroidery machines are equipped with Tajima’s latest and most advanced technologies. It is suited for name embroidery and emblem processing on uniforms, hats, socks, bags, etc., as well as in-store embroidery processing. The i-TM and DCP allow even embroidery beginners to work on any material, at high speed and with stable quality.

High quality, stable stitches with “i-TM” and “DCP

The need to adjust the upper thread tension according to the stitch, design, or material, as is done by skilled operators on conventional embroidery machines, is no longer necessary.
The reason is that Tajima’s Digitally Controlled Presser foot (DCP) measures fabric thickness with each stitch, and its AI technology, Intelligent Thread Management (i-TM), automatically supplies the right amount of upper thread for different fabric thicknesses and stitches in just 0.05 seconds. In addition, DCP suppresses fabric fluttering and enables stable sewing.

Point 1: Stable production of top-quality embroidery

Even if the item to be embroidered or thread type changes frequently, such as an in-store order, the embroidery machine will always provide the best possible stitches without having to change settings.

Point 2: Significantly reduced order-to-delivery lead time

The time required for trial sewing and adjustment can be reduced, and the speed can be increased with less worry of thread breakage, resulting in an estimated 30% reduction in processing time (compared to conventional machines).

Point 3: Minimize quality defects

The DCP reduces fabric fluttering, resulting in fewer press marks and thread trimming errors, and thus fewer defective pieces. Manual adjustment for delicate fabrics such as velvet and enameled material reduces the risk of fabric press marks.

Point 4: Early embroidery service start-up is possible

Even in stores where operators are frequently replaced, anyone can easily perform professional-quality embroidery by simply learning basic operations. It is also possible to launch an embroidery business at an early stage.

More about i-TM+DCP



Technologies Developed Over the Years Help Increase Production Efficiency

Maintains Max RPM up to 4mm stitch

Generally, the longer the stitches, the lower the RPM, but the key is not to slow down too much at 3mm-7mm, which are most commonly used for embroidery.
TMEZ-SC maintains the highest RPM up to 4mm stitching and does not excessively reduce RPM for stitches between 3mm to 7mm.



Tajima’s quality recognized by leading brands

It is used by leading brands and fashion houses. They yield a beautiful finish, regardless of whether you are using a satin stitch, a running stitch, or a fill stitch. What’s more, a variety of options for sequins and beads enables additional forms of expression.



Suitable for any finished product, regardless of the item

Large embroidery field

With an embroidery field of 360 mm (14.4inches) (D) x 500 mm (20 inches) (W), it is ideal for large embroidery designs such as large bags and the backs of T-shirts, sweatshirts, etc.

Fast and clean cap embroidery

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.

Long slim cylinder beds for small goods

The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.



User-Friendly Design

In addition to i-TM and DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

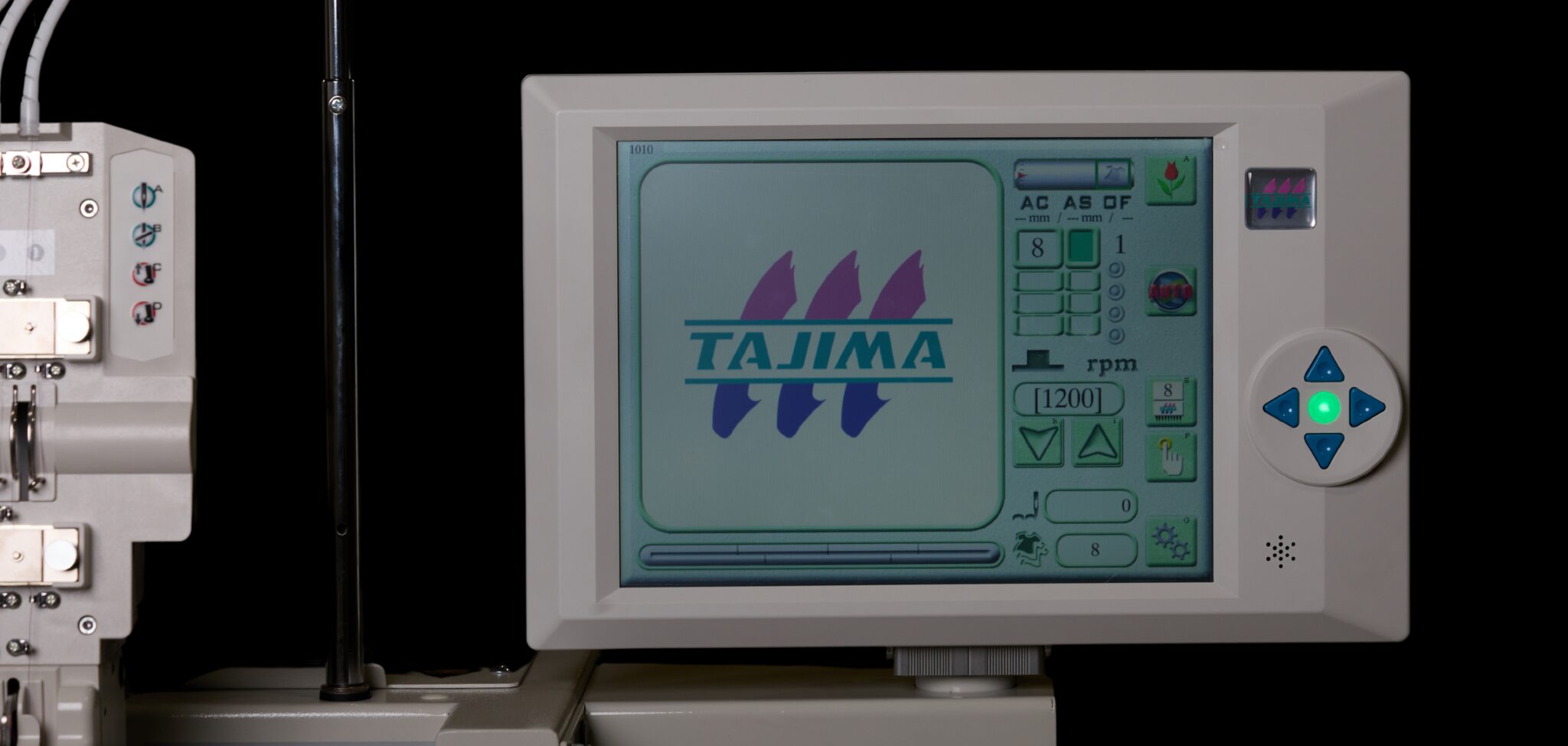

12.1-inch touch panel

The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.

New auto thread trimming device

Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.

Design position adjustment function(corrects framing misalignment)

Even if the fabric pattern is slanted in framing, it can be corrected from the operation panel, with no need for repeated attempts to reframe.



Tajima’s Customer Support Services

Offer Personalized Embroidery Through E-Commerce and Stores

PulseID provides comprehensive support for embroidery personalization, from receiving in-store or online e-commerce orders to production and management. It saves labor and increases efficiency while helping enhance brand loyalty and advertising effectiveness.

More about Personalization



Sales in 130 Countries Around the World

We have delivered machines to more than 130 countries and have a worldwide service network. Replacing embroidery machines or starting a new embroidery business? We apply Tajima’s proprietary AI technology and software in helping resolve our customers’ business issues. Please feel free to contact us through the CONTACT form.



TMEZ-SC

TMEZ-SC Product Specifications

1

Multicolor heads

9/12/15

Needles

1,200rpm

Max Revolution

160w

Power consumption

95kg

Machine Weight



Needles Embroidery field (D×W) Width Overall Width Depth Height
Border Frame Wide Cap Frame Semi-wide
Cap Frame
Tubular Frame Pocket Frame
9/12/15 360×500 mm
14.1×19.6 inch
75×360 mm
2.9×14.1 inch
83×180 mm
3.2×7.0 inch
335×453 mm
13.1×17.8 inch

45×80 mm
1.7×3.1 inch

80×55 mm
3.1×2.1 inch
1,030 mm
40.5 inch
1,205 mm
47.4 inch
770 mm
30.3 inch
977 mm
38.5 inch

*Power consumption
 Single-phase 100-120V / 200-240V 50Hz/60Hz
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.



Factory options support a wider variety of embroidery expression and increase production efficiency

Sequin Device

Seed Beads Device

Multi Cording Device

Position Marker

Laser Crosshair Marker

Beam Sensor

Click here for a list of other options.



Embroidery frame that can be applied to various items

Tubular Frame

Border Frame

Cap Frame

Pocket Frame

Sock Frame

M-Frame

Air Type Clamp Frame

Air Type Pocket Frame

X-extension unit

Click here for a list of other embroidery frames.
